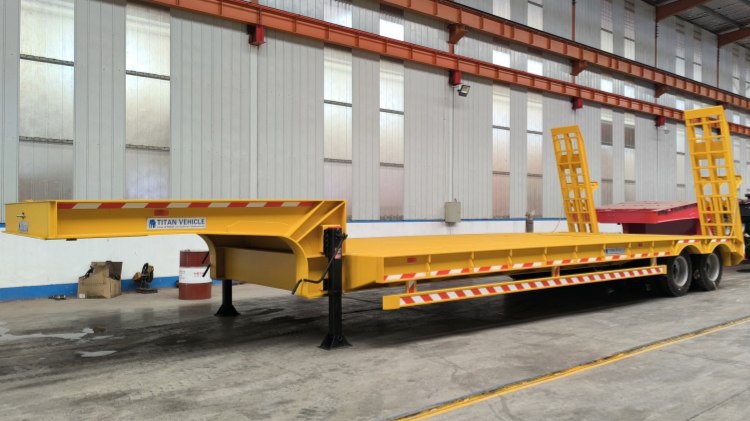

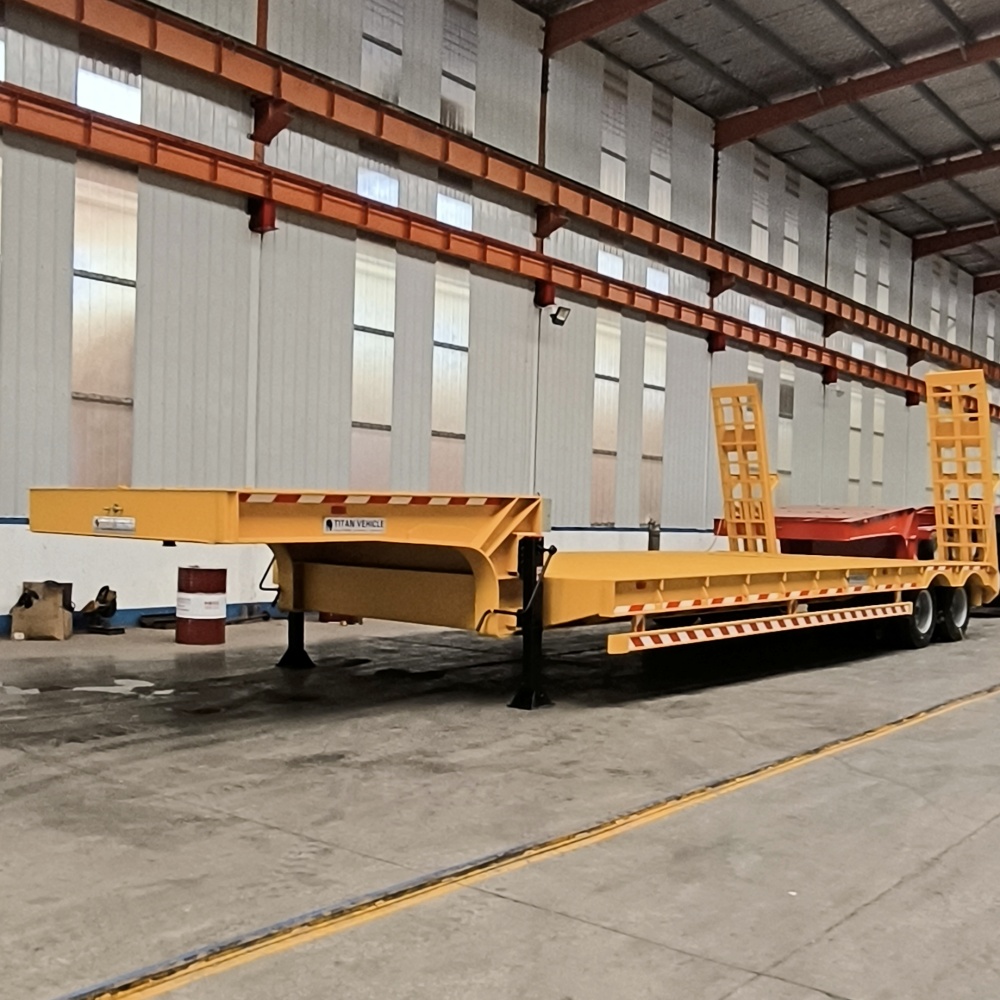

2 Line 4 Axle 100 Tons Lowbed Trailer
2 Line 4 Axle 100 Tons Lowbed Trailer

2 Line 4 Axle 100 Tons Lowbed Trailer

21400 USD

TITAN lowbed trailer for sale is a trailer specially designed for transporting tall, large, and heavy cargoes, usually used to transport extra-high construction and agricultural equipment, large machinery, heavy engineering equipment, and other tall and large cargoes. These lowbed trailer types often consist of two or even more axles, equipped with a special suspension system and floor to provide strong support and safety stability.

SKU: MT940350
MPN: MT940350
品牌: TITAN

2 Axle 100 Tons Lowbed Trailer For Sale Price : 21400USD

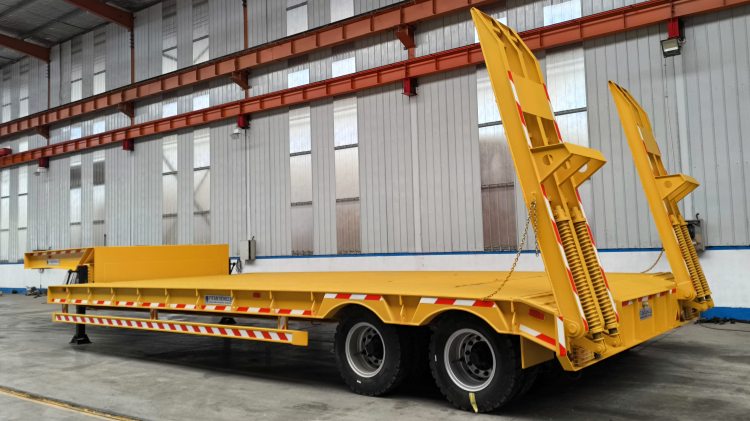

The spring ladder of lowbed trailer types is reasonably and stably designed, which can effectively reduce the risk of accidents when operators climb or descend and reduce the possibility of work injuries.

Spring ladders of lowbed trailer for sale are made of four-in-one lightweight materials, have a sturdy structure, and have strong load-bearing capacity and durability.

2 Line 4 Axle 100 Tons Lowbed Trailer

2 Line 4 Axle 100 Tons Lowbed Trailer

2 Line 4 Axle 100 Tons Lowbed Trailer

2 Line 4 Axle 100 Tons Lowbed Trailer

2 Line 4 Axle 100 Tons Lowbed Trailer

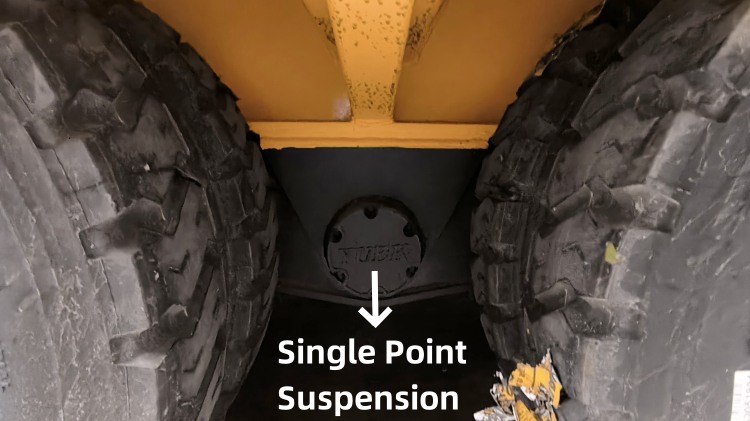

Single-point suspension can achieve more even weight distribution and improve the stability of the lowbed trailer.

2 Line 4 Axle 100 Tons Lowbed Trailer For Sale Types

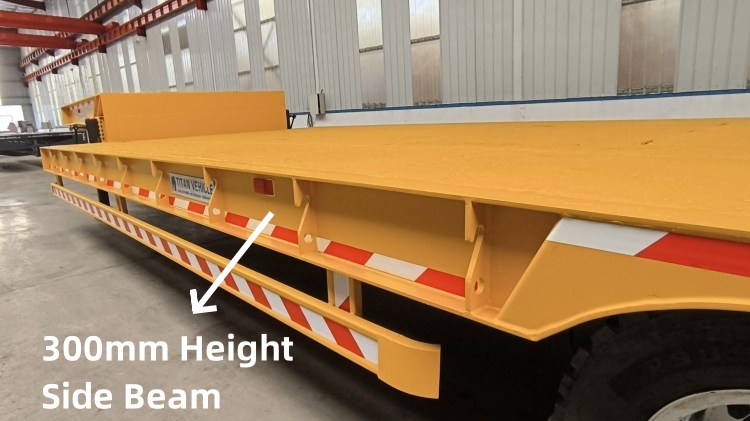

High side beams of lowbed trailer types can be used as support when loading and unloading goods.

2 Line 4 Axle 100 Tons Lowbed Trailer For Sale Types

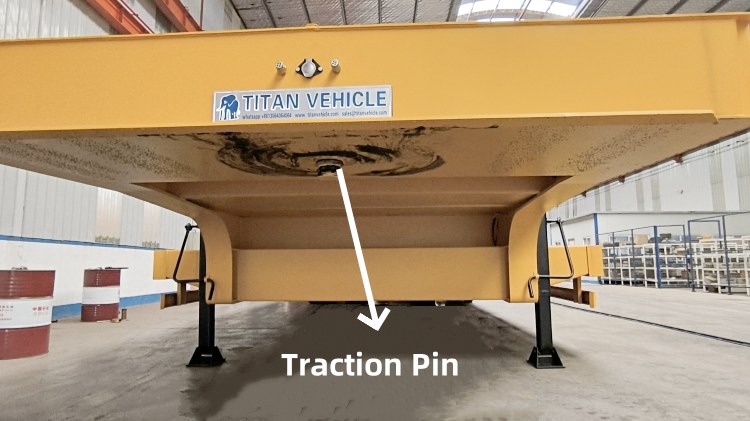

Effective traction pin design prevents the lowbed trailer for sale from detaching while driving.



Specification Of Lowbed Trailer Types

Overall dimension:13500x3000*1.7

Loading capacity:  100 ton

Axles:4 axles with 2 axles dolly

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Ramp: spring type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



Advantage Of Lowbed Trailer For Sale

1. In bad weather or road conditions, the non-slip floor of lowbed trailer for sale can provide drivers with better control and prevent cargo from being damaged by external factors.

2. The enhanced suspension design reduce the wear of the chassis and suspension system, extend the service life of the lowbed trailer types, and reduce maintenance and repair costs.

3. The low-profile gooseneck design of the lowbed trailer for sale avoids the risk of collision between the cargo and external buildings or overpasses.

4.

5.

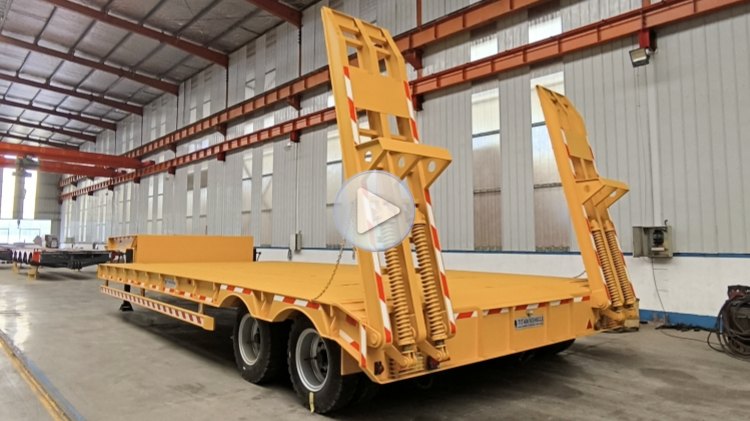

Video Of 2 Axle 100 Tons Lowbed Trailer For Sale

Here is the video of 2 Line 4 Axle 100 Tons Lowbed Trailer Types. TITAN can offer you spot goods in cheap price.

If you are interested in it, please feel free to contact us.

2 Line 4 Axle 100 Tons Lowbed Trailer For Sale Types
