抽拉风电叶片运输车
抽拉风电叶片运输车

抽拉风电叶片运输车

100 USD

获取准确报价,请发送询盘



中国世运车辆销售的抽拉风电叶片运输车专为在普通道路上运输风电叶片而设计。  抽拉式风电叶片运输车可在其工作平台上伸缩3倍以上,以适应不同长度的风电叶片运输。

SKU: Extendable Wind Blade Trailer
MPN: MT940103
品牌: Shiyun

抽拉风电叶片运输车产品描述:

我们的可伸缩拖车具有平坦、可伸缩的负载地板和液压强制转向。超大的转向角使时运伸缩挂车的机动性出类拔萃。此外,压载拖车和遥控拖车的这种液压转向可确保维护成本非常低,并将轮胎磨损保持在最低水平。中国世运销售的可伸缩拖车和伸缩拖车广泛用于长途货物运输,特别是风车零部件物流,如风叶、风塔节和涡轮机。可伸缩伸缩梁可以是 2 或 3 部分。总长度可达62米。伸缩拖车的原始设计是使用机械轴,就像低平板拖车连接伸缩梁使其长度可调,使拖车适应不同长度的货物。伸缩梁可以安装在其他半挂车上,为您提供可伸缩的平板拖车、可伸缩的吊式甲板拖车以及可伸缩的低平板拖车。

Extendable Wind Blade Trailer for Sale - Shiyun Vehicle

抽拉风电叶片运输车出售

Extendable Wind Blade Trailer for Sale - Shiyun Vehicle

六桥风叶运输车

Extendable Wind Blade Trailer for Sale - Shiyun Vehicle

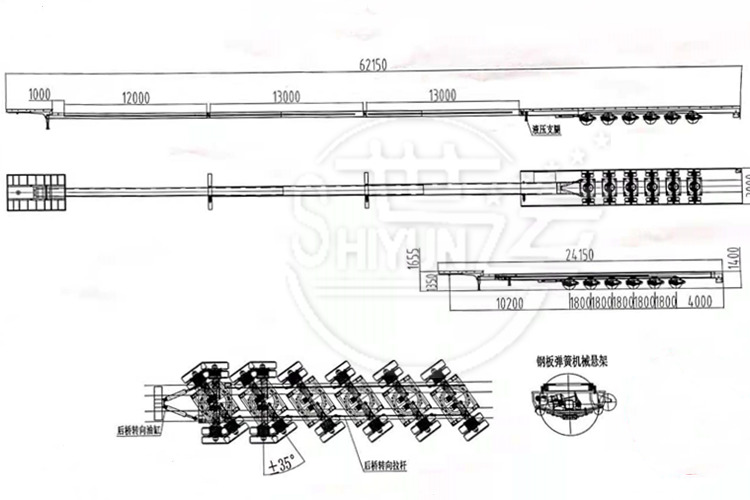

规格:

品牌:世运牌风车叶片运输伸缩拖车

闭合长度:24150mmX3000mmX1650mm

总长度:延伸后62,000mm

运输:50-80m风车叶片

装载能力:60吨

悬挂:机械弹簧悬挂/空气悬挂/液压悬挂可选

平台厚度:3mm

液压动力站:柴油机

轮胎:24个

轴数:6轴

制动系统:WABCO紧急阀

牵引销:3.5 英寸高强度钢螺栓式

支腿:JOST C200,可选配液压支腿

Specification: Brand: Shiyun Brand Extendable Trailer for Windmill Blade Transport Closed length: 24150mmX3000mmX1650mm Total length: 62,000mm after extension Transport: 80m windmill blade Loading capacity: 60 Ton Suspension: Mechanical spring suspension/air suspension/hydraulic suspension optional Platform thickness: 3 mm Hydraulic power station: Diesel engine Tyre: 24pcs Axle: 6 axle Braking system: WABCO emergency valve King pin: 3.5 inch high tensile steel bolted type Landing gear: JOST C200 with hydraulic landing legs optional  Advantages: 1. The general extendable transporter of wind turbine blades is a bit similar to the lowbed transporter, but its girder adopts a buckle box type design, and the girder is pulled to adjust the length of the vehicle to adapt to the transportation of wind blades of different lengths. 2. The extendable flatbed semi trailer has flat, concave beam, tire leaking and pull-out structures. The frame is stepped and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength. 3. The vehicle body is made of high-quality steel, and the main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various construction machinery, large equipment and steel. It adopts three-axis balance type, two-axis balance type or rigid suspension, with a mass balance block installed between the front and rear leaf springs, which can make the front and rear leaf springs change in equal amounts and balance the forces on the front and rear axles.



优点:

1、一般的风电叶片伸缩式运输车与低平板运输车有点类似,但其大梁采用扣箱式设计,通过拉动大梁来调整车辆的长度以适应运输不同长度的风电叶片。

2、伸缩式平板半挂车具有平、凹梁、漏胎、拉出式结构。车架呈阶梯状,纵梁截面呈工字形,具有高刚性、高强度的特点。

3、车体采用优质钢材,车架和货台主平面低,保证了运输的稳定性,适合承载各种工程机械、大型设备和钢材。采用三轴平衡式、二轴平衡式或刚性悬挂,前后板簧之间装有质量平衡块,可使前后板簧等量变化,平衡受力前轴和后轴。
